BUILDING

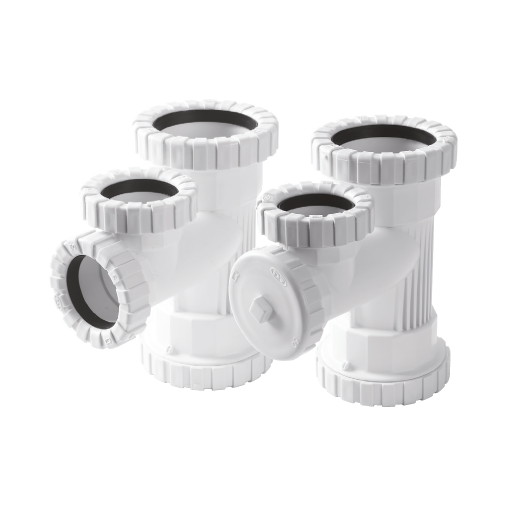

General fittings [ Sextia ]S-T / S-CT

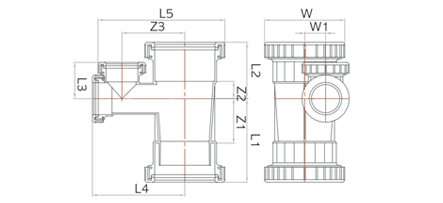

Specification
| DN | Z1 | Z2 | Z3 | L1 | L2 | L3 | L4 | L5 | W | W1 |
|---|---|---|---|---|---|---|---|---|---|---|
| 100X50X50 | 85 | 33 | 120 | 160 | 108 | 70 | 177 | 242 | 153 | 40 |
| 75X50X50 | 76 | 32 | 110 | 139 | 95 | 70 | 166 | 218 | 125 | 28 |
BUILDING
General fittings [ Sextia ] | DN | Z1 | Z2 | Z3 | L1 | L2 | L3 | L4 | L5 | W | W1 |
|---|---|---|---|---|---|---|---|---|---|---|
| 100X50X50 | 85 | 33 | 120 | 160 | 108 | 70 | 177 | 242 | 153 | 40 |
| 75X50X50 | 76 | 32 | 110 | 139 | 95 | 70 | 166 | 218 | 125 | 28 |
