BUILDING

General fittings [ URF fittings ]

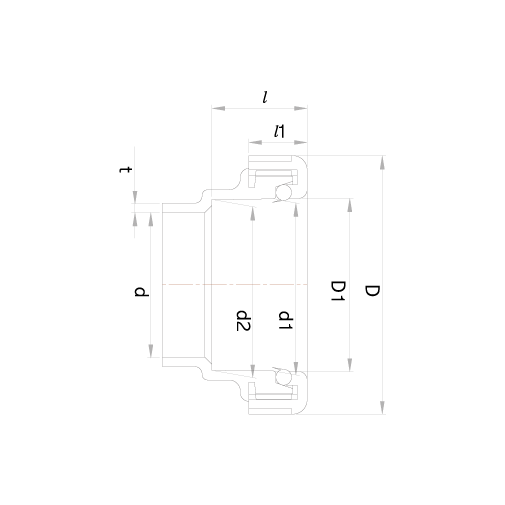

Insert part

Specification


DN d
(max)		 d1 d2 Tolerance
of d1,d2		 D D1
(min)		 ℓ
(min)		 ℓ1 t
35 35 43 42.5 ±0.25 68 43 26.5 18 2.7
40 40.5 49 48.5 ±0.25 76 49 31.5 19.5 2.7
50 51 61 60.5 ±0.25 90 61 33.5 20 3
75 77 90 89.5 ±0.30 125 90 48 24 3.6
100 99 115 114.5 ±0.30 153 115 60.5 28 4
125 125 141 140.5 ±0.30 181 141 66.5 31 5
