BUILDING

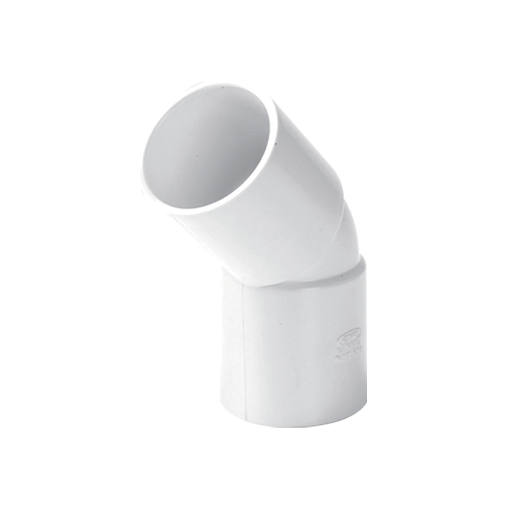

Pressure fittings45 Elbow (45L)

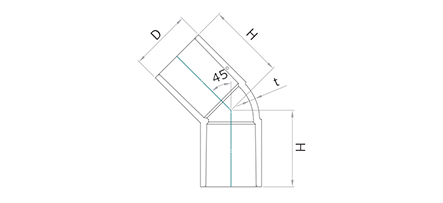

Specification
| DN | D | t | H |
|---|---|---|---|
| 50 | 70 | 5.0 | 80 |
| ◆ 75 | 103.3 | 6.7 | 96 |
| ◆ 100 | 128.9 | 7.5 | 121 |
| ◆ 150 | 186.4 | 9.9 | 185 |
