SEWER
Sewer pipes

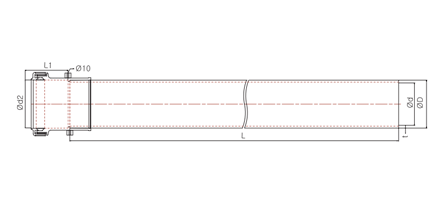

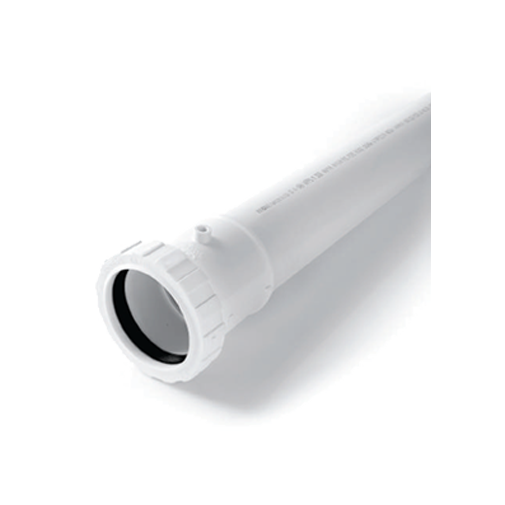

Impact-resistant sewer supply pipe (HIVG1-R2 type, HIVG2- R2 type)
HIVG2 - R2 type
| DN |
Outer diameter (ØD) |
Thickness (t) |
Inner diameter (ØD) |
Normal length (L) |
Inner diameter (ØD2) |
Expanded part (L1) |
| Diameter |
Indication |
Typ. |
Tolerance |
min. |
Tolerance |
| 100 |
HIVG2 100 |
114 |
±0.4 |
3.1 |
+0.8 |
107 |
6,000 |
115 |
88 |
| 150 |
HIVG2 150 |
165 |
±0.5 |
5.1 |
+0.8 |
154 |
6,000 |
166.5 |
105 |
| 200 |
HIVG2 200 |
216 |
±0.7 |
6.5 |
+1.0 |
202 |
6,000 |
218.5 |
119 |
HIVG1 - R2 type
| DN |
Outer diameter (ØD) |
Thickness (t) |
Inner diameter (ØD) |
Normal length (L) |
Inner diameter (ØD2) |
Expanded part (L1) |
| Diameter |
Indication |
Typ. |
Tolerance |
min. |
Tolerance |
| 100 |
HIVG1 100 |
114 |
±0.4 |
6.6 |
+1.0 |
100 |
6,000 |
115 |
88 |
| 150 |
HIVG1 150 |
165 |
±0.5 |
8.9 |
+1.4 |
146 |
6,000 |
166.5 |
105 |
| 200 |
HIVG1 200 |
216 |
±0.7 |
10.3 |
+1.4 |
194 |
6,000 |
218.5 |
119 |
